iRobo.Prerequisites.Installation


     Note:

       Apply the prerequisites properly before using the iRobo studio.



iRobo Studio

  • .NET Framework version 4.5.0 or greater


Windows Resolution

iRobo Studio works with all display resolutions but you need to set the scale to 100%, and after making this change,you must restart the iRobo Studio to apply changes to it.


Web Automation Workflows


  • Confirm using the suitable iRobo web extension installed based on the used browser whether Chrome, Firefox or Edge.
  • Then, confirm that is connected to (Studio / Agent).



Java Application Automation Workflows


In order to go through Java Automation, you need to install the below:



  1. JRE : https://www.oracle.com/java/technologies/javase-jre8-downloads.html
  2. JSE : https://www.oracle.com/java/technologies/javase-downloads.html
  3. Access bridge : https://docs.oracle.com/javase/accessbridge/2.0.2/setup.htm
  4. Enable Java Access Bridge, to do that use command prompt and navigate the location you installed the JDK then use this command: (jabswitch.exe /enable).
  5. You should receive this message (The Java Access Bridge has been enabled).
  6. Finally, click on Run Java Bridge button in iRobo studio.


Outlook Email Automation Workflows


  • Check to install one of the following Outlook versions:-(2013, 2016 and 2019) on your machine and set its configuration properly.


Office Automation Workflows


  • Check that MS Office is properly installed and run workflow manually at first to confirm that there is no problem on the machine itself.



Workflows includes configuration / Settings / Paths:


  • If you develop a Workflow and  set paths on it like (D:\files\test.xlsx), you need to identify and  set shared and unified paths  accessible by machines that supposed to run those Workflows. if this path is not accessible/identified, in turn, the Workflow doesn't work.



iRobo Agent


Windows Resolution

iRobo Agent works with all display resolutions but you need to set the scale to 100%, and after making this change, you must restart the iRobo Agent to apply changes to it.


iRobo solution supports the following browsers:-

Google Chrome, Edge.



iRobo Web Extension Add-on:-

Add iRobo extension to your Web Browser to handle web automation processes.


Follow these steps to add iRobo extension to Chrome (as an example):

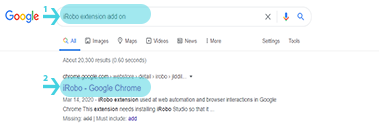

1- In Google search, enter iRobo extension add on to search for and then click enter.



2- Click on iRobo -Google Chrome.


3- iRobo page appears, click on Add to Chrome button.



4- Click on Add extension button.

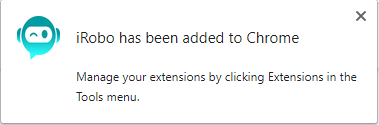

5- iRobo extension is added to Chrome.





iRobo ControlPanel Server - iRobo Flow


Install Docker Version no.2.1.0.5+

     Note:

         Execute Docker-Compose file to run dependent services in containers; like: Mongo DB, RabbitMQ for

         Message Queuing , Node-Red (iRoboFlow).
